DS423+ ungewöhnlich langsam (Disks?)

[billiloumez]

Hallo zusammen,

ich bin vor einigen Monaten von einer Eigenbau-Xpenology NAS auf eine DS423+ umgestiegen. In der NAS sind 4× Seagate Exos X18 (16 TB, 3.5", CMR) im RAID 5 und insgesamt 6GB RAM. Leider habe ich ziemlich Performance Probleme mit der NAS. Diese werden an unterschiedlichen Stellen deutlich:

• Dateiübertragung von NAS per SMB und FTP mit deutlichen "dips"
• Lange Ladezeiten in Plex
• Lange Ladezeiten, bis hin zu Lade-Abbrüchen in Sonarr und Radarr, wenn ein Download via SABnzbd läuft
• Downloads über SABnzbd erreichen nicht die volle Geschwindigkeit meiner Gigabit-Internetleitung

All diese Probleme habe ich auf meiner Eigenbau-NAS nicht, die direkt daneben am selben Switch hängt. Ich würde also Netzwerkprobleme erst mal ausschließen. Am Beispiel Dateiübertragung per SMB: Wenn ich von meiner Eigenbau-NAS zu meinem PC eine 6GB Datei übertrage, habe ich komplett durchgehend 1 Gbit (ca. 112MB/s) anliegen, während die DS423+ mit 112MB/s startet, dann zwischendurch aber auch mal auf 60MB/s oder weniger runtergeht.

Wenn ich direkt auf der NAS einen Performance-Test per

sudo dd bs=1M count=10240 if=/dev/zero of=/volume1/Files/testx conv=fdatasync

starte, sehe ich Geschwindigkeiten von um die 200 Mb/s (ca. 20 Mal getestet), teilweise auch deutlich darunter (der letzte Test lag bei 164 MB/s). Wenn ich das mit anderen Werten vergleiche, die ich im Internet gefunden habe, dürfte das deutlich zu wenig sein.

Im Speicher-Manger werden mir nach einem SMART Test alle Disks mit "In Ordnung" angezeigt, augenscheinlich laufen auch sonst keine Disk-Operationen.

Könnte mir bitte noch jemand einen Tipp geben, woran meine Performance-Probleme liegen könnten? Bzw. was ich noch tun kann, um das weiter zu troubleshooten?

Besten Dank,
billiloumez



[ctrlaltdelete]

Welche DSM Version verwendest du?

Poste doch mal die SMART Werte:

Konsole:

sudo -i

smartctl -a -d sat /dev/sata1

smartctl -a -d sat /dev/sata2

smartctl -a -d sat /dev/sata3

smartctl -a -d sat /dev/sata4



[ctrlaltdelete]

So sieht es bei mir aus mit 4 x 6 TB WD red plus und die sind wesentlich langsamer als die Exos:

root@DS920plus:~# hdparm -tT --direct /dev/md2

/dev/md2:
Timing O_DIRECT cached reads: 2268 MB in 2.00 seconds = 1133.64 MB/sec
Timing O_DIRECT disk reads: 1424 MB in 3.00 seconds = 474.53 MB/sec



[billiloumez]

DSM Version ist 7.2.1-69057 Update 3

Hier die SMART Werte:

Spoiler: /dev/sata1

root@IS-NAS03:~# smartctl -a -d sat /dev/sata1
smartctl 6.5 (build date Sep 26 2022) [x86_64-linux-4.4.302+] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model:     ST16000NM000J-2TW103
Serial Number:    ZR59X204
LU WWN Device Id: 5 000c50 0e4a09ecc
Firmware Version: SC02
User Capacity:    16,000,900,661,248 bytes [16.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   Unknown(0x0fe0) (minor revision not indicated)
SATA Version is:  SATA >3.2 (0x1ff), 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Mon Dec 18 10:08:10 2023 CET
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  567) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        (1426) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x70bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME                                                   FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate                                              0x000f   083   064   044    Pre-fail  Always       -       223639496
  3 Spin_Up_Time                                                     0x0003   093   093   000    Pre-fail  Always       -       0
  4 Start_Stop_Count                                                 0x0032   100   100   020    Old_age   Always       -       6
  5 Reallocated_Sector_Ct                                            0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate                                                  0x000f   085   060   045    Pre-fail  Always       -       345315602
  9 Power_On_Hours                                                   0x0032   099   099   000    Old_age   Always       -       1729
 10 Spin_Retry_Count                                                 0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count                                                0x0032   100   100   020    Old_age   Always       -       6
 18 Unknown_Attribute                                                0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect                                               0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout                                                  0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel                                          0x0022   066   056   000    Old_age   Always       -       34 (Min/Max 33/35)
192 Power-Off_Retract_Count                                          0x0032   100   100   000    Old_age   Always       -       1
193 Load_Cycle_Count                                                 0x0032   100   100   000    Old_age   Always       -       69
194 Temperature_Celsius                                              0x0022   034   044   000    Old_age   Always       -       34 (0 23 0 0 0)
197 Current_Pending_Sector                                           0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable                                            0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count                                             0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate                                            0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours                                                0x0000   100   253   000    Old_age   Offline      -       1728 (173 101 0)
241 Total_LBAs_Written                                               0x0000   100   253   000    Old_age   Offline      -       41178163866
242 Total_LBAs_Read                                                  0x0000   100   253   000    Old_age   Offline      -       524788762703

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      1721         -
# 2  Short offline       Completed without error       00%      1707         -
# 3  Extended offline    Interrupted (host reset)      00%      1707         -
# 4  Short offline       Completed without error       00%      1697         -
# 5  Short offline       Completed without error       00%      1673         -
# 6  Short offline       Completed without error       00%      1649         -
# 7  Short offline       Completed without error       00%      1625         -
# 8  Short offline       Completed without error       00%      1601         -
# 9  Extended offline    Completed without error       00%      1594         -
#10  Short offline       Completed without error       00%      1529         -
#11  Short offline       Completed without error       00%      1505         -
#12  Short offline       Completed without error       00%      1481         -
#13  Short offline       Completed without error       00%      1457         -
#14  Short offline       Completed without error       00%      1433         -
#15  Extended offline    Completed without error       00%      1424         -
#16  Short offline       Completed without error       00%      1361         -
#17  Short offline       Completed without error       00%      1337         -
#18  Short offline       Completed without error       00%      1313         -
#19  Short offline       Completed without error       00%      1289         -
#20  Short offline       Completed without error       00%      1265         -
#21  Short offline       Completed without error       00%      1241         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

Spoiler: /dev/sata2

root@IS-NAS03:~# smartctl -a -d sat /dev/sata2
smartctl 6.5 (build date Sep 26 2022) [x86_64-linux-4.4.302+] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model:     ST16000NM000J-2TW103
Serial Number:    ZR5A23WR
LU WWN Device Id: 5 000c50 0e4ab177d
Firmware Version: SC02
User Capacity:    16,000,900,661,248 bytes [16.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   Unknown(0x0fe0) (minor revision not indicated)
SATA Version is:  SATA >3.2 (0x1ff), 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Mon Dec 18 10:09:37 2023 CET
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  567) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        (1436) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x70bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME                                                   FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate                                              0x000f   076   064   044    Pre-fail  Always       -       39160632
  3 Spin_Up_Time                                                     0x0003   093   093   000    Pre-fail  Always       -       0
  4 Start_Stop_Count                                                 0x0032   100   100   020    Old_age   Always       -       6
  5 Reallocated_Sector_Ct                                            0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate                                                  0x000f   085   060   045    Pre-fail  Always       -       345694793
  9 Power_On_Hours                                                   0x0032   099   099   000    Old_age   Always       -       1706
 10 Spin_Retry_Count                                                 0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count                                                0x0032   100   100   020    Old_age   Always       -       6
 18 Unknown_Attribute                                                0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect                                               0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout                                                  0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel                                          0x0022   068   058   000    Old_age   Always       -       32 (Min/Max 31/32)
192 Power-Off_Retract_Count                                          0x0032   100   100   000    Old_age   Always       -       1
193 Load_Cycle_Count                                                 0x0032   100   100   000    Old_age   Always       -       68
194 Temperature_Celsius                                              0x0022   032   042   000    Old_age   Always       -       32 (0 24 0 0 0)
197 Current_Pending_Sector                                           0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable                                            0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count                                             0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate                                            0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours                                                0x0000   100   253   000    Old_age   Offline      -       1705 (10 127 0)
241 Total_LBAs_Written                                               0x0000   100   253   000    Old_age   Offline      -       41050999159
242 Total_LBAs_Read                                                  0x0000   100   253   000    Old_age   Offline      -       452462053344

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      1698         -
# 2  Short offline       Completed without error       00%      1684         -
# 3  Extended offline    Interrupted (host reset)      00%      1684         -
# 4  Short offline       Completed without error       00%      1674         -
# 5  Short offline       Completed without error       00%      1650         -
# 6  Short offline       Completed without error       00%      1626         -
# 7  Short offline       Completed without error       00%      1602         -
# 8  Short offline       Completed without error       00%      1578         -
# 9  Extended offline    Completed without error       00%      1569         -
#10  Short offline       Completed without error       00%      1506         -
#11  Short offline       Completed without error       00%      1482         -
#12  Short offline       Completed without error       00%      1458         -
#13  Short offline       Completed without error       00%      1434         -
#14  Short offline       Completed without error       00%      1410         -
#15  Extended offline    Completed without error       00%      1399         -
#16  Short offline       Completed without error       00%      1338         -
#17  Short offline       Completed without error       00%      1314         -
#18  Short offline       Completed without error       00%      1290         -
#19  Short offline       Completed without error       00%      1266         -
#20  Short offline       Completed without error       00%      1242         -
#21  Short offline       Completed without error       00%      1218         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.



[billiloumez]

Spoiler: /dev/sata3

root@IS-NAS03:~# smartctl -a -d sat /dev/sata3
smartctl 6.5 (build date Sep 26 2022) [x86_64-linux-4.4.302+] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model:     ST16000NM000J-2TW103
Serial Number:    ZR59RZ87
LU WWN Device Id: 5 000c50 0e48d7364
Firmware Version: SC02
User Capacity:    16,000,900,661,248 bytes [16.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   Unknown(0x0fe0) (minor revision not indicated)
SATA Version is:  SATA >3.2 (0x1ff), 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Mon Dec 18 10:10:15 2023 CET
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  559) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        (1365) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x70bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME                                                   FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate                                              0x000f   082   064   044    Pre-fail  Always       -       141341244
  3 Spin_Up_Time                                                     0x0003   093   093   000    Pre-fail  Always       -       0
  4 Start_Stop_Count                                                 0x0032   100   100   020    Old_age   Always       -       6
  5 Reallocated_Sector_Ct                                            0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate                                                  0x000f   085   060   045    Pre-fail  Always       -       343961354
  9 Power_On_Hours                                                   0x0032   098   098   000    Old_age   Always       -       1771
 10 Spin_Retry_Count                                                 0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count                                                0x0032   100   100   020    Old_age   Always       -       6
 18 Unknown_Attribute                                                0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect                                               0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout                                                  0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel                                          0x0022   069   060   000    Old_age   Always       -       31 (Min/Max 29/31)
192 Power-Off_Retract_Count                                          0x0032   100   100   000    Old_age   Always       -       1
193 Load_Cycle_Count                                                 0x0032   100   100   000    Old_age   Always       -       71
194 Temperature_Celsius                                              0x0022   031   040   000    Old_age   Always       -       31 (0 22 0 0 0)
197 Current_Pending_Sector                                           0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable                                            0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count                                             0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate                                            0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours                                                0x0000   100   253   000    Old_age   Offline      -       1770 (142 138 0)
241 Total_LBAs_Written                                               0x0000   100   253   000    Old_age   Offline      -       41239736055
242 Total_LBAs_Read                                                  0x0000   100   253   000    Old_age   Offline      -       665099893209

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      1762         -
# 2  Short offline       Completed without error       00%      1749         -
# 3  Extended offline    Interrupted (host reset)      00%      1749         -
# 4  Short offline       Completed without error       00%      1738         -
# 5  Short offline       Completed without error       00%      1714         -
# 6  Short offline       Completed without error       00%      1690         -
# 7  Short offline       Completed without error       00%      1666         -
# 8  Short offline       Completed without error       00%      1642         -
# 9  Extended offline    Completed without error       00%      1635         -
#10  Short offline       Completed without error       00%      1570         -
#11  Short offline       Completed without error       00%      1546         -
#12  Short offline       Completed without error       00%      1522         -
#13  Short offline       Completed without error       00%      1498         -
#14  Short offline       Completed without error       00%      1474         -
#15  Extended offline    Completed without error       00%      1465         -
#16  Short offline       Completed without error       00%      1402         -
#17  Short offline       Completed without error       00%      1378         -
#18  Short offline       Completed without error       00%      1354         -
#19  Short offline       Completed without error       00%      1330         -
#20  Short offline       Completed without error       00%      1306         -
#21  Short offline       Completed without error       00%      1282         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

Spoiler: /dev/sata4

root@IS-NAS03:~# smartctl -a -d sat /dev/sata4
smartctl 6.5 (build date Sep 26 2022) [x86_64-linux-4.4.302+] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model:     ST16000NM000J-2TW103
Serial Number:    ZRS0E8GY
LU WWN Device Id: 5 000c50 0e381c9e9
Firmware Version: SC02
User Capacity:    16,000,900,661,248 bytes [16.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   Unknown(0x0fe0) (minor revision not indicated)
SATA Version is:  SATA >3.2 (0x1ff), 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Mon Dec 18 10:11:01 2023 CET
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  559) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        (1383) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x70bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME                                                   FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate                                              0x000f   081   064   044    Pre-fail  Always       -       123301046
  3 Spin_Up_Time                                                     0x0003   094   094   000    Pre-fail  Always       -       0
  4 Start_Stop_Count                                                 0x0032   100   100   020    Old_age   Always       -       6
  5 Reallocated_Sector_Ct                                            0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate                                                  0x000f   085   060   045    Pre-fail  Always       -       348288345
  9 Power_On_Hours                                                   0x0032   098   098   000    Old_age   Always       -       1755
 10 Spin_Retry_Count                                                 0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count                                                0x0032   100   100   020    Old_age   Always       -       6
 18 Unknown_Attribute                                                0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect                                               0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout                                                  0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel                                          0x0022   066   057   000    Old_age   Always       -       34 (Min/Max 32/34)
192 Power-Off_Retract_Count                                          0x0032   100   100   000    Old_age   Always       -       1
193 Load_Cycle_Count                                                 0x0032   100   100   000    Old_age   Always       -       70
194 Temperature_Celsius                                              0x0022   034   043   000    Old_age   Always       -       34 (0 24 0 0 0)
197 Current_Pending_Sector                                           0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable                                            0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count                                             0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate                                            0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours                                                0x0000   100   253   000    Old_age   Offline      -       1754 (142 214 0)
241 Total_LBAs_Written                                               0x0000   100   253   000    Old_age   Offline      -       41265387487
242 Total_LBAs_Read                                                  0x0000   100   253   000    Old_age   Offline      -       614270196212

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      1747         -
# 2  Short offline       Completed without error       00%      1733         -
# 3  Extended offline    Interrupted (host reset)      00%      1733         -
# 4  Short offline       Completed without error       00%      1723         -
# 5  Short offline       Completed without error       00%      1699         -
# 6  Short offline       Completed without error       00%      1675         -
# 7  Short offline       Completed without error       00%      1651         -
# 8  Short offline       Completed without error       00%      1627         -
# 9  Extended offline    Completed without error       00%      1618         -
#10  Short offline       Completed without error       00%      1555         -
#11  Short offline       Completed without error       00%      1531         -
#12  Short offline       Completed without error       00%      1507         -
#13  Short offline       Completed without error       00%      1483         -
#14  Short offline       Completed without error       00%      1459         -
#15  Extended offline    Completed without error       00%      1446         -
#16  Short offline       Completed without error       00%      1387         -
#17  Short offline       Completed without error       00%      1363         -
#18  Short offline       Completed without error       00%      1339         -
#19  Short offline       Completed without error       00%      1315         -
#20  Short offline       Completed without error       00%      1291         -
#21  Short offline       Completed without error       00%      1267         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

Und hier noch das (traurige) Ergebnis von hdparm:

root@IS-NAS03:~# hdparm -tT --direct /dev/md2

/dev/md2:
 Timing O_DIRECT cached reads:   324 MB in  2.00 seconds = 161.89 MB/sec
 Timing O_DIRECT disk reads: 194 MB in  3.03 seconds =  64.12 MB/sec



[dil88]

Die SMART-Werte sehen m.E. gut aus. Hast Du irgendwelche Logfiles aktiviert? SMB-Log wäre besonders kritisch aus meiner Sicht. Und hast Du einen RAM-Test gemacht?



[ctrlaltdelete]

Ok, die Smartwerte passen, hiermit kann man umrechnen ID 1 + 7: https://s.i.wtf/#000014C27559
Was zeigt der Ressourcenmonitor?
Teste mal die HDDs einzeln durch mit:
hdparm -tT --direct /dev/sata1

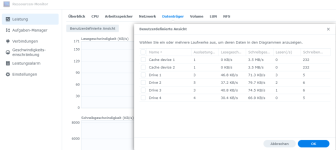

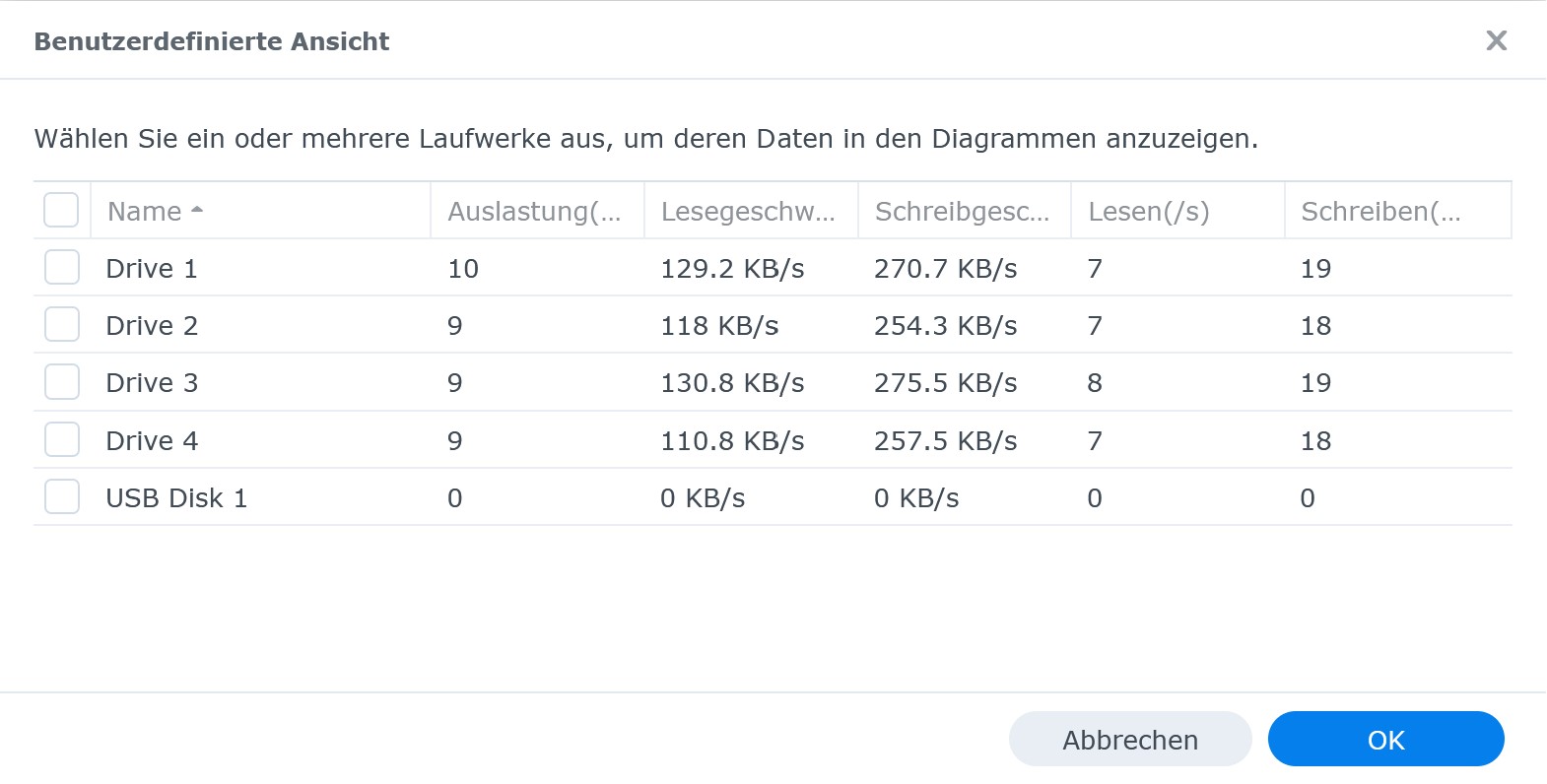

Edit: Die Datenträgerauslastung wäre interessant, siehe Bild.



[billiloumez]

Die SMART-Werte sehen m.E. gut aus. Hast Du irgendwelche Logfiles aktiviert? SMB-Log wäre besonders kritisch aus meiner Sicht. Und hast Du einen RAM-Test gemacht?

Logfiles habe ich bewusst nicht aktiviert, wo sehe ich das denn? RAM-Test kann ich am Wochenende mal durchführen.

Ok, die Smartwerte passen, hiermit kann man umrechnen ID 1 + 7: https://s.i.wtf/#000014C27559
Was zeigt der Ressourcenmonitor?
Teste mal die HDDs einzeln durch mit:
hdparm -tT --direct /dev/sata1
Edit: Die Datenträgerauslastung wäre interessant, siehe Bild.

Hier die Ergebnisse von hdparm, die sehen im Vergleich zu heute Vormittag vergleichsweise gut aus:

Spoiler: hdparm

root@IS-NAS03:~# hdparm -tT --direct /dev/sata1

/dev/sata1:
 Timing O_DIRECT cached reads:   972 MB in  2.00 seconds = 485.33 MB/sec
 Timing O_DIRECT disk reads: 504 MB in  3.02 seconds = 167.02 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata1

/dev/sata1:
 Timing O_DIRECT cached reads:   852 MB in  2.00 seconds = 425.80 MB/sec
 Timing O_DIRECT disk reads: 658 MB in  3.01 seconds = 218.79 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata1

/dev/sata1:
 Timing O_DIRECT cached reads:   870 MB in  2.00 seconds = 434.67 MB/sec
 Timing O_DIRECT disk reads: 672 MB in  3.01 seconds = 223.29 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata2

/dev/sata2:
 Timing O_DIRECT cached reads:   910 MB in  2.00 seconds = 454.61 MB/sec
 Timing O_DIRECT disk reads: 608 MB in  3.00 seconds = 202.56 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata2

/dev/sata2:
 Timing O_DIRECT cached reads:   924 MB in  2.02 seconds = 456.74 MB/sec
 Timing O_DIRECT disk reads: 546 MB in  3.08 seconds = 177.41 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata2

/dev/sata2:
 Timing O_DIRECT cached reads:   786 MB in  2.00 seconds = 392.25 MB/sec
 Timing O_DIRECT disk reads: 736 MB in  3.01 seconds = 244.84 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata3

/dev/sata3:
 Timing O_DIRECT cached reads:   642 MB in  2.00 seconds = 320.77 MB/sec
 Timing O_DIRECT disk reads: 762 MB in  3.01 seconds = 253.56 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata3

/dev/sata3:
 Timing O_DIRECT cached reads:   588 MB in  2.00 seconds = 293.86 MB/sec
 Timing O_DIRECT disk reads: 662 MB in  3.00 seconds = 220.49 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata3

/dev/sata3:
 Timing O_DIRECT cached reads:   676 MB in  2.00 seconds = 337.28 MB/sec
 Timing O_DIRECT disk reads: 656 MB in  3.00 seconds = 218.53 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata4

/dev/sata4:
 Timing O_DIRECT cached reads:   658 MB in  2.00 seconds = 328.78 MB/sec
 Timing O_DIRECT disk reads: 680 MB in  3.01 seconds = 226.10 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata4

/dev/sata4:
 Timing O_DIRECT cached reads:   726 MB in  2.00 seconds = 362.91 MB/sec
 Timing O_DIRECT disk reads: 670 MB in  3.00 seconds = 223.08 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/sata4

/dev/sata4:
 Timing O_DIRECT cached reads:   646 MB in  2.00 seconds = 322.75 MB/sec
 Timing O_DIRECT disk reads: 706 MB in  3.00 seconds = 235.32 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/md2

/dev/md2:
 Timing O_DIRECT cached reads:   1130 MB in  2.00 seconds = 564.34 MB/sec
 Timing O_DIRECT disk reads: 852 MB in  3.00 seconds = 283.92 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/md2

/dev/md2:
 Timing O_DIRECT cached reads:   1160 MB in  2.00 seconds = 579.79 MB/sec
 Timing O_DIRECT disk reads: 1768 MB in  3.07 seconds = 576.04 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/md2

/dev/md2:
 Timing O_DIRECT cached reads:   1066 MB in  2.00 seconds = 532.94 MB/sec
 Timing O_DIRECT disk reads: 1684 MB in  3.00 seconds = 561.30 MB/sec

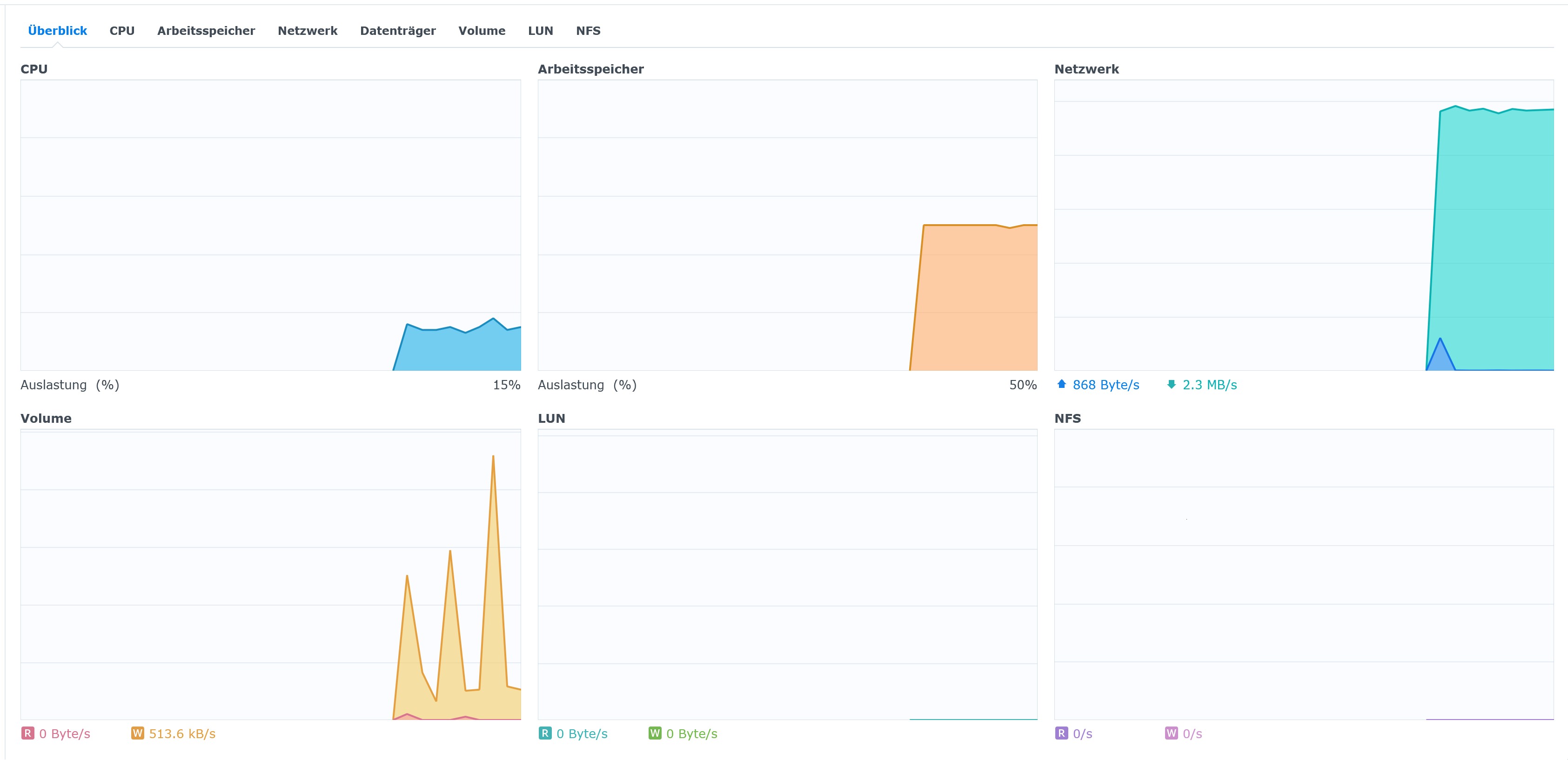

Im Ressourcen-Monitor ist nichts außergewöhnliches ersichtlich, heute Vormittag hab ich da auch nichts bemerkenswertes gesehen:



[ctrlaltdelete]

Hast du die Tests 3 mal laufen lassen?



[billiloumez]

Ja, um Ausreißer ausschließen zu können.



[ctrlaltdelete]

Weil die Werte sehen ja eigentlich gut aus, aber diese Ausreißer verstehe ich nicht, mit deinem Setup müsstest du auf 600 MB/s im Volume md2 kommen.

/dev/md2: Timing O_DIRECT cached reads: 1130 MB in 2.00 seconds = 564.34 MB/sec Timing O_DIRECT disk reads: 852 MB in 3.00 seconds = 283.92 MB/sec root@IS-NAS03:~# hdparm -tT --direct /dev/md2

Schwierig, lass mal einen Memtest laufen für den RAM.
Und teste trotzdem mal dein Netzwerk, z.B. mit Nastester

Sind die Übertragungen immer langsam und die anderen Probleme permanent.
Die DS423+ ist mehr oder weniger baugleich mit meiner DS920+ und die performt gut.



[ctrlaltdelete]

Was läuft denn so alles auf dem NAS, gibt es da evtl. Belastungsspitzen, die soviel CPU brauchen, dass fürs Software-Raid nicht mehr genug, CPU Zeit zur Verfügung steht? Aber das dümpelt ja alles nur vor sich hin.



[billiloumez]

Danke, ich teste den RAM sobald ich daheim bin (Donnerstag) und lass den Nastester laufen.

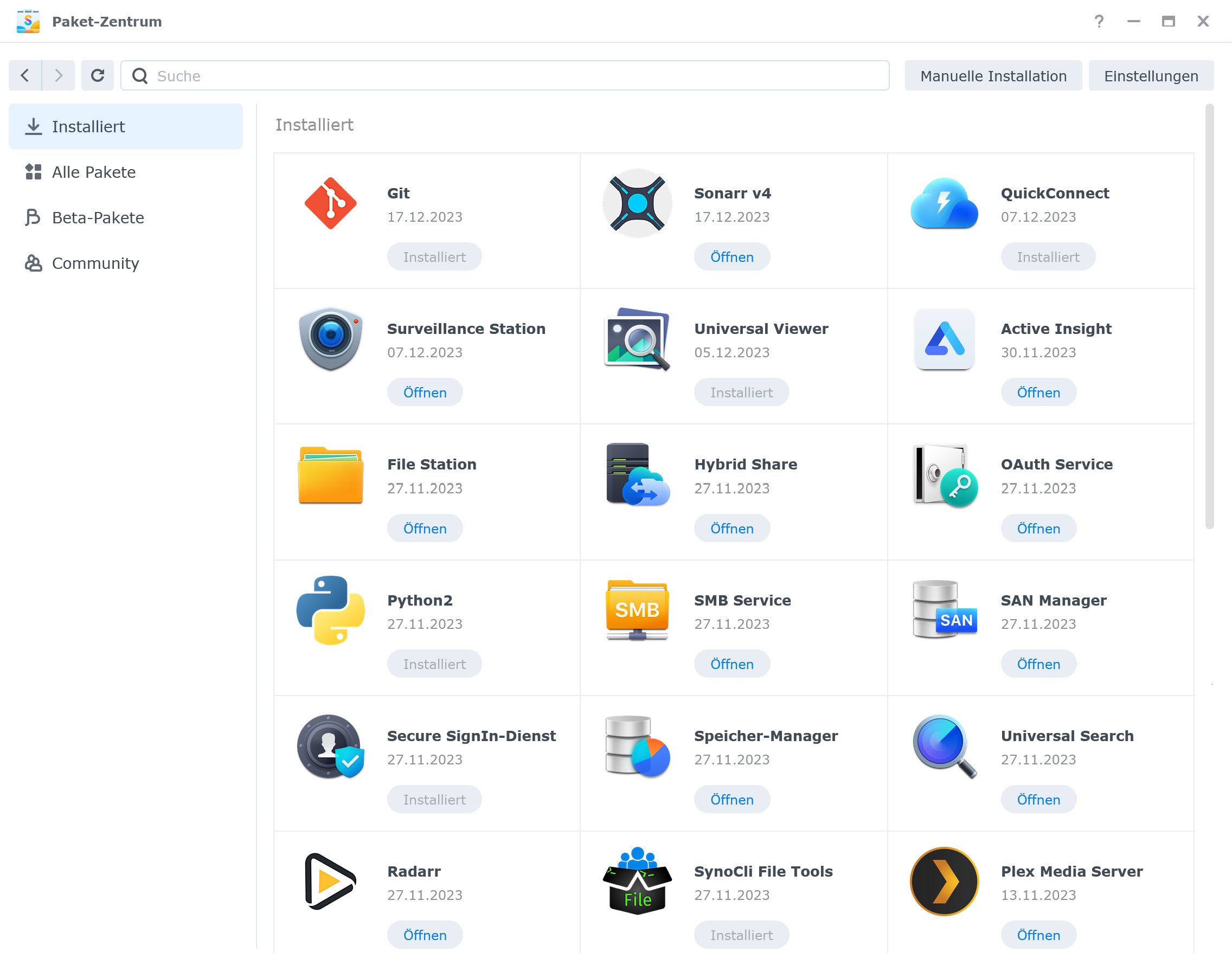

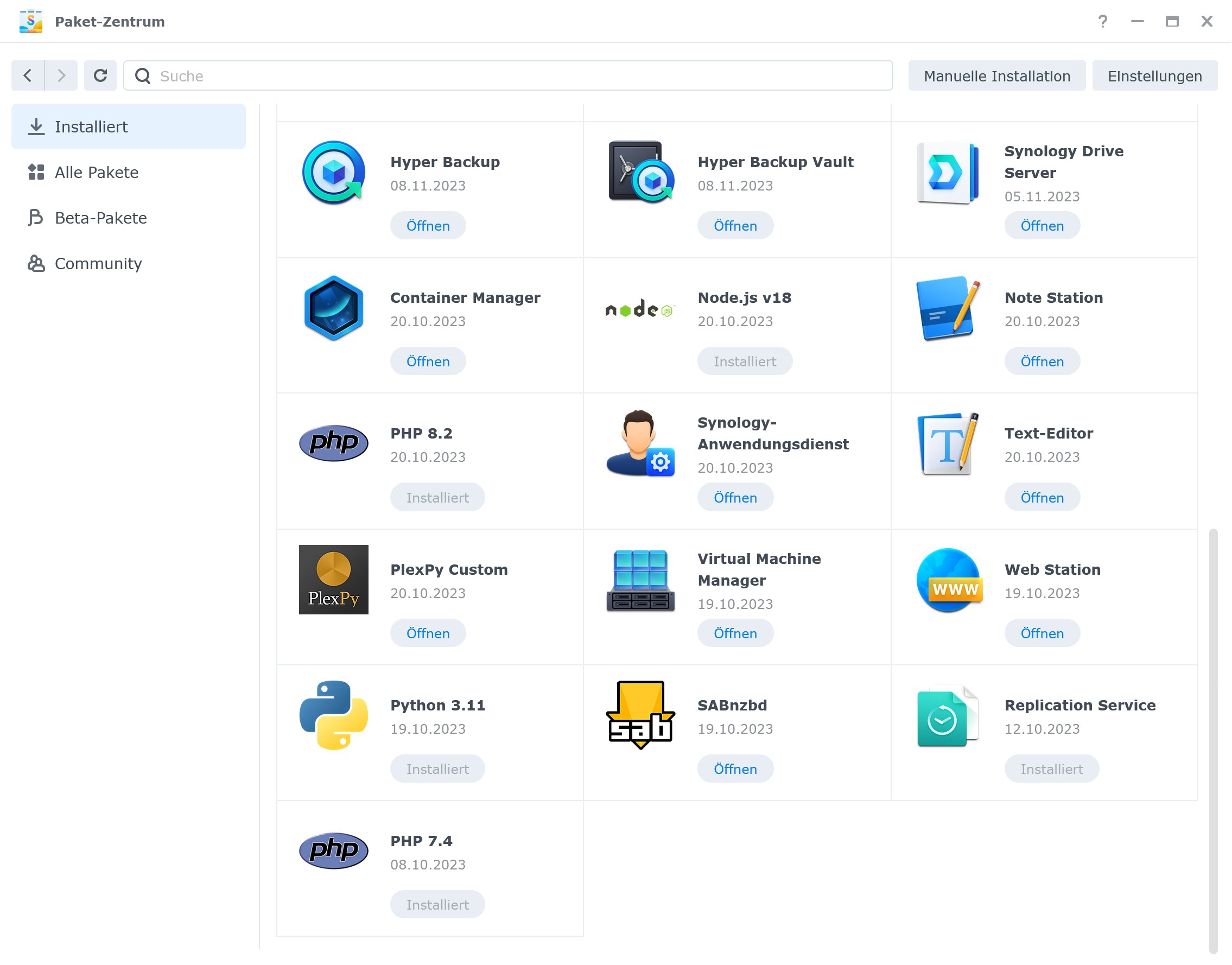

Hier mal die installierten Pakete:

Außerdem läuft noch BitWarden als self-hosted Instanz als Container, in der Surveillance Station sind 5 Kameras eingebunden, meine PCs machen Backups und ein enigma2 Receiver schreibt Aufnahmen auf die NAS. Aber nichts davon war heute Vormittag augenscheinlich aktiver als gewöhnlich. Backups oder Aufnahmen liefen am Morgen überhaupt nicht.

Gerade scheint die NAS sehr gut zu laufen und zu performen, wie man es erwarten würde, ich habe aber diese Probleme eigentlich täglich und teilweise auch über lange Zeiträume.



[ctrlaltdelete]

Beobachte das mal.



[billiloumez]

Ich denke ich habe gerade zumindest mal einen Auslöser gefunden. Direkt am Morgen hatte ich sehr gute hdparm Werte:

root@IS-NAS03:~# hdparm -tT --direct /dev/md2

/dev/md2:
 Timing O_DIRECT cached reads:   1004 MB in  2.00 seconds = 501.59 MB/sec
 Timing O_DIRECT disk reads: 2006 MB in  3.00 seconds = 668.53 MB/sec

Nun seit einiger Zeit extrem schlechte:

root@IS-NAS03:~# hdparm -tT --direct /dev/md2

/dev/md2:
 Timing O_DIRECT cached reads:   576 MB in  2.00 seconds = 287.58 MB/sec
 Timing O_DIRECT disk reads: 246 MB in  3.01 seconds =  81.81 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/md2

/dev/md2:
 Timing O_DIRECT cached reads:   314 MB in  2.00 seconds = 156.87 MB/sec
 Timing O_DIRECT disk reads: 258 MB in  3.13 seconds =  82.31 MB/sec
root@IS-NAS03:~# hdparm -tT --direct /dev/md2

/dev/md2:
 Timing O_DIRECT cached reads:   396 MB in  2.01 seconds = 197.23 MB/sec
 Timing O_DIRECT disk reads: 246 MB in  3.00 seconds =  81.97 MB/sec

htop zeigt mir an, dass Sonarr gerade etwas tut:



Und innerhalb von Sonarr sehe ich, dass gerade der Task "Refresh series" läuft:


Vor wenigen Sekunden war der Task beendet (nach knapp 30 Minuten) und schon sind auch meine hdparm Werte wieder bei um die 600 MB/s.

Jetzt ist natürlich die Preisfrage, warum zwingt so ein bisschen I/O mein ganzes RAID so in die Knie?



[dil88]

Mir fehlt die Erfahrung mit RAID-Arrays, aber grundsätzlich werden Platten durch viele Kopfbewegungen sehr langsam. Du hast vier Spindeln, sicher, aber vielleicht reicht eine solche Last aus, um die Werte so zu drücken.



[Synchrotron]

Die bessere Lösung für Kameraüberwachung ist dafür eine eigene, separate Festplatte zu verwenden. Das würde schon mal einen permanenten Datenstrom vom eigentlichen Datenarray weghalten. Also 3x RAID als Volume + 1x EinzelHDD für die Überwachung.

Um zu sehen, ob das einen Einfluß hat, vielleicht die Surveillance Station einfach mal stoppen.
