2Bay NAS (DS215+) eine Platte entfernen

[Josef1406]

Guten Morgen,

vielen Dank für deine Hilfe, habe dadurch was dazugelernt.

Trotzdem werde ich, da ich keine Daten auf dem Laufwerk brauche, die NAS komplett auf Werkseinstellungen zurücksetzen und neu konfigurieren.

Liebe Grüße



[ctrlaltdelete]

Kannst du vorher trotzdem den Befehl ausführen?



[Josef1406]

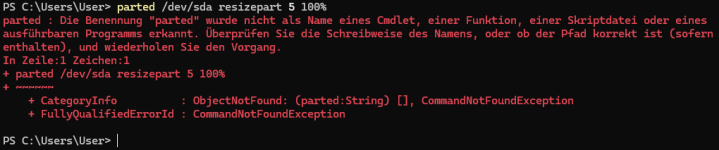

Hi, da kommt diese Meldung:



[ctrlaltdelete]

du musst dich erst per ssh mit der DS verbinden



[Josef1406]



[Josef1406]

Sorry habe das mit der ssh Anmeldung übersehen :-(



[ctrlaltdelete]

Jetzt müsstest du im Speichermanager erweitern können?



[Josef1406]

Ja genau, es funktioniert, Hammer!


Große Lob an deine Kompetenz und an deine Hilfsbereitschaft.



[ctrlaltdelete]

Jup, ab und zu habe ich ein paar helle Momente
Gerne, poste doch mal die SMART Werte der HDD wegen dem defekten Sektor.
Einfach per SSH: smartctl -a -d sat /dev/sda



[Josef1406]



[Josef1406]



[Josef1406]



[Josef1406]

Ich habe diese Platte gebraucht gekauft (Ebay) , war vermutlich ein Fehler.
Der Preis war voll ok und der Verkäufer (verkauft viele Stück) hat eigentlich auch sehr gute Bewertungen gehabt.



[ctrlaltdelete]

Nö, die HDD ist in Ordnung.
entweder den Fehler hiermit löschen und oder die Dateisystemprüfung mal laufen lassen, der orange Link im Speichermanager.
https://github.com/007revad/Synology_clear_drive_error



[ctrlaltdelete]

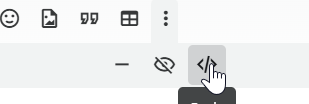

Sehr hilfreich wäre solche Ausgaben als Code zu Speichern, dann kann man suchen und mit paste & copy arbeiten, z.B. um die Seagate Werte umzurechnen.

root@DS920plus:~# smartctl -a -d sat /dev/sata6
smartctl 6.5 (build date Sep 26 2022) [x86_64-linux-4.4.302+] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model:     ST12000NM0127
Serial Number:    ZJV4SF3M
LU WWN Device Id: 5 000c50 0b5e85eae
Firmware Version: G005
User Capacity:    12,000,138,625,024 bytes [12.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Thu Jan 16 08:51:33 2025 CET
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  567) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        (1092) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME                                                   FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate                                              0x000f   083   064   044    Pre-fail  Always       -       197982348
  3 Spin_Up_Time                                                     0x0003   090   090   000    Pre-fail  Always       -       0
  4 Start_Stop_Count                                                 0x0032   100   100   020    Old_age   Always       -       8
  5 Reallocated_Sector_Ct                                            0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate                                                  0x000f   077   060   045    Pre-fail  Always       -       47207922
  9 Power_On_Hours                                                   0x0032   098   098   000    Old_age   Always       -       1845
 10 Spin_Retry_Count                                                 0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count                                                0x0032   100   100   020    Old_age   Always       -       2
184 End-to-End_Error                                                 0x0032   100   100   099    Old_age   Always       -       0
187 Reported_Uncorrect                                               0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout                                                  0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel                                          0x0022   067   062   040    Old_age   Always       -       33 (Min/Max 29/37)
192 Power-Off_Retract_Count                                          0x0032   100   100   000    Old_age   Always       -       67
193 Load_Cycle_Count                                                 0x0032   100   100   000    Old_age   Always       -       80
194 Temperature_Celsius                                              0x0022   033   040   000    Old_age   Always       -       33 (0 16 0 0 0)
195 Hardware_ECC_Recovered                                           0x001a   005   002   000    Old_age   Always       -       197982348
197 Current_Pending_Sector                                           0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable                                            0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count                                             0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate                                            0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours                                                0x0000   100   253   000    Old_age   Offline      -       1826 (173 172 0)
241 Total_LBAs_Written                                               0x0000   100   253   000    Old_age   Offline      -       11624402447
242 Total_LBAs_Read                                                  0x0000   100   253   000    Old_age   Offline      -       59217460602

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
