Apps von Volume(x) nach Volume(y) verschieben

[RalfPeter]

Was würdet ihr vorschlagen was weg kann? MariaDB läuft mittlerweile als Container, pgsql.32 scheint eine alte Installation zu sein?

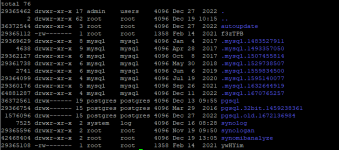

Hier noch der Screenshot:



[DaveR]

Now I see a "package" in the list with the name @database.

DON"T move @database to an NVMe volume. After a DSM update many Synology packages will create a new empty database in volume1 if the NVMe volume is not mounted yet.

I need to check if the script prevents moving @database to an NVMe volume.



[RalfPeter]

Thank you for the hint. I just moved @database to NVME volume. So if i understand, i should move it back before next update. I will do so.

But i first will delete volume1 and recreate it as a btrfs volume (it's a ext4 at the moment). Do you think it's a problem?

The packages themselves can reside on NVME volume?

After moving all my packages to volume2 (the NVME volume) i see some folders that had been left on volume1. Such as @userpreferences and some others. Are you interested in a list (a screenshot)?

When i moved some php and python packages, many services were stoped, but not restarted after the moving. It's not really a problem, i think an advice in the doc would help to not forget to start all services after basic packages had been moved.

Ty for your very helpful script!



[DaveR]

Moving @database temporarily to the NVMe volume is okay.

The packages themselves are okay on the NVMe volume.

Yes, please provide a screenshot of what is left on volume 1.

@userpreferences is one of the folders that DSM automatically moves when you delete the volume it's on... but I honestly don't know if DSM will move it to an NVMe volume. My @userpreferences don't contain much.

root@SENNA:~# cd /volume1/@userpreference
root@SENNA:/volume1/@userpreference# tree
.
├── admin
│   ├── appnotify
│   ├── appnotify.lock
│   └── emailaccount.db
├── @administrators
├── Contacts
├── Dave
│   ├── activities
│   ├── appnotify
│   ├── appnotify.lock
│   ├── bkgtask
│   ├── emailaccount.db
│   ├── loginservice.db
│   ├── SynoFinder
│   └── usersettings
├── guest
├── MinimServer
│   ├── appnotify
│   └── appnotify.lock
├── root
├── system
├── SYSTEM_ADMIN
└── Virtualization
    ├── appnotify
    └── appnotify.lock


11 directories, 15 files

If you save an export of DSM's settings from "Control Panel > Update & Restore > Configuration Backup" you should be able to restore those settings later if needed.

When i moved some php and python packages, many services were stoped, but nnot restarted after the moving. It's not really a problem, i think an advice in the doc would help to not forget to start all services after basic packages had been moved.

Was it some packages or some services that weren't restarted?

Before stopping any packages the script creates a list of dependant packages that are currently running and later restarts any that haven't already been restarted.



[Benares]

@DaveR, I like the names of your NASes
Where does the command "tree" comes from? Any extensions installed? Ok, I see "SynoCli File Tools"?



[DaveR]

Yep, SynoCli File Tools includes tree

SynoCli Disk Tools includes dutree which is also very handy.

Every time I edit my scripts on github I have to remember not to use commands that aren't included in DSM.

My Synology NASes are named Senna, Webber and Oscar.



[Benares]

Who ist Oscar? Piastri?



[DaveR]

Yep, Piastri was too hard to spell so I named it Oscar.

I didn't use Ricciardo for the same reason.



[Benares]

I love F1, but I never visited a race. Have you ever been in Melbourne?
In Germany we have the "Hockenheimring" and the "Nürburgring" but there were no races since many years. My son lives in in Austria, so "Spielberg" seems to be the next choice.



[DaveR]

I've never been to an F1 race. I went to the first Australian MotoGP race (but it wasn't called MotoGP back then) and I realised it's better to watch races on TV (even though you miss the crowd atmosphere). If I go to an F1 race I'd want to go to Spa or Monaco.

I want to see Hulk finally get a podium.



[Benares]

My elder son lives/works in Belgium, so Spa would be another choice. Monaco would be my favorite too, but it's far away, but not so far as from Australia



[RalfPeter]

Good morning,

hier is the output from dutree (i think i have to learn the parameters and i did not find any documentation for the CLI commandline tools). I deleted my own folders from the list:

[ volume1 14.86 TiB ]
├─ @synoelasticd.core     │                                 │   0%      4.12 GiB
├─ @ActiveInsight         │                                 │   0%      3.68 GiB
├─ @synovpcd.core         │                                 │   0%      2.80 GiB
├─ @eaDir                 │                                 │   0%      1.97 GiB
├─ @synoaudiod.core       │                                 │   0%      1.20 GiB
├─ @database              │                                 │   0%    701.67 MiB
├─ @appstore              │                                 │   0%    364.19 MiB
├─ @clamav                │                                 │   0%     88.09 MiB
├─ @dms.core              │                                 │   0%     86.37 MiB
├─ @rspamd.core           │                                 │   0%     63.00 MiB
├─ @resource-monitor      │                                 │   0%     53.44 MiB
├─ @httpd.core            │                                 │   0%     52.79 MiB
├─ @syslog-ng.core        │                                 │   0%     42.27 MiB
├─ @ssactruled.core       │                                 │   0%     41.08 MiB
├─ @optware               │                                 │   0%     37.01 MiB
├─ @synoelasticd.core.gz  │                                 │   0%     27.70 MiB
├─ @CompositorTileW.core. │                                 │   0%     25.43 MiB
├─ @ssrotated.core        │                                 │   0%     19.05 MiB
├─ @synopkg.core          │                                 │   0%     13.11 MiB
├─ @syno_set_config.core  │                                 │   0%     12.24 MiB
├─ @SYNO.VideoStati.core  │                                 │   0%     10.20 MiB
├─ @rspamd.core.gz        │                                 │   0%      9.76 MiB
├─ @synoaudiod.core.gz    │                                 │   0%      9.54 MiB
├─ @synovideometada.core. │                                 │   0%      9.22 MiB
├─ @ffmpeg27.core.gz      │                                 │   0%      8.29 MiB
├─ @thread2.core.gz       │                                 │   0%      7.57 MiB
├─ @tmp                   │                                 │   0%      6.82 MiB
├─ @SYNO.ContactAnd.core  │                                 │   0%      6.71 MiB
├─ @surveillance          │                                 │   0%      6.10 MiB
├─ @SynoFinder-log        │                                 │   0%      5.63 MiB
├─ @WTCheck.tThread.core. │                                 │   0%      4.61 MiB
├─ @builtin-dyn-aut.core  │                                 │   0%      4.59 MiB
├─ @synoscim              │                                 │   0%      4.33 MiB
├─ @ssbackup              │                                 │   0%      3.67 MiB
├─ @SYNO.FolderShar.core  │                                 │   0%      3.62 MiB
├─ @facerecognition.core  │                                 │   0%      3.62 MiB
├─ @SYNO.Core.Packa.core  │                                 │   0%      2.59 MiB
├─ @smbd.core             │                                 │   0%      2.22 MiB
├─ @synophoto-bin-t.core  │                                 │   0%      1.91 MiB
├─ @sswebstreamd.core.gz  │                                 │   0%      1.66 MiB
├─ @synoaic_monitor.synol │                                 │   0%      1.45 MiB
├─ @appdata               │                                 │   0%      1.39 MiB
├─ @snmpd.synology_v1000_ │                                 │   0%      1.35 MiB
├─ @httpd.synology_v1000_ │                                 │   0%      1.29 MiB
├─ @SYNO.SynologyDr.core. │                                 │   0%      1.19 MiB
├─ @convert.synology_v100 │                                 │   0%      1.16 MiB
├─ @synocalendar          │                                 │   0%      1.16 MiB
├─ @sshd.core             │                                 │   0%    680.00 KiB
├─ @SYNO.ContactAnd.core. │                                 │   0%    671.09 KiB
├─ @synofoto-bin-mi.synol │                                 │   0%    664.52 KiB
├─ @config_backup         │                                 │   0%    654.00 KiB
├─ @SYNO.Core.UserS.core. │                                 │   0%    604.53 KiB
├─ @ffmpeg.synology_v1000 │                                 │   0%    592.67 KiB
├─ @synocontentextr.synol │                                 │   0%    589.97 KiB
├─ @doveadm.synology_v100 │                                 │   0%    534.30 KiB
├─ @synofoto-bin-re.synol │                                 │   0%    490.79 KiB
├─ @pkg-SynologyMom.core. │                                 │   0%    396.23 KiB
├─ @userpreference        │                                 │   0%    301.76 KiB
├─ @imap.core.gz          │                                 │   0%    296.36 KiB
├─ @appconf               │                                 │   0%    183.59 KiB
├─ @apphome               │                                 │   0%     84.00 KiB
├─ @download_backup       │                                 │   0%     74.42 KiB
├─ @gpg.core.gz           │                                 │   0%     68.77 KiB
├─ aquota.user            │                                 │   0%     66.00 KiB
├─ @S2S                   │                                 │   0%     53.17 KiB
├─ @appshare              │                                 │   0%     52.00 KiB
├─ aquota.group           │                                 │   0%     47.00 KiB
├─ @MailScanner           │                                 │   0%     33.02 KiB
├─ @quarantine            │                                 │   0%     20.00 KiB
├─ lost+found             │                                 │   0%     16.00 KiB
├─ @SynoFinder-etc-volume │                                 │   0%     15.59 KiB
├─ @spool                 │                                 │   0%     12.16 KiB
├─ NetBackup              │                                 │   0%     12.00 KiB
├─ @img_bkp_cache         │                                 │   0%     12.00 KiB
├─ @SynoDrive             │                                 │   0%      8.00 KiB
├─ synoquota.db           │                                 │   0%      5.00 KiB
├─ @syno_rbd              │                                 │   0%      4.00 KiB
├─ @apptemp               │                                 │   0%      4.00 KiB
├─ @iSCSI                 │                                 │   0%      4.00 KiB
├─ @ipkgui_archive        │                                 │   0%      4.00 KiB
├─ @synoconfd             │                                 │   0%      4.00 KiB
├─ @maillog               │                                 │   0%      4.00 KiB
├─ @docker_backup         │                                 │   0%      4.00 KiB
├─ @AntiVirus             │                                 │   0%      4.00 KiB
├─ @docker                │                                 │   0%      4.00 KiB
└─ @download              │                                 │   0%      4.00 KiB

Was it some packages or some services that weren't restarted?

I meant packages ... not services



[DaveR]

You can delete all of those files that end in .core or .core.gz DMS creates those coredumps when a package crashes so that Synology Support can see what the package had in memory when it crashed.

I can see a @dms.core which would seem like DSM itself crashed at some point.

NetBackup is created when you enable the rysnc service, so if you disable the rsync service (for now) you can delete the NetBackup shared folder (from within Control Panel > Shared Folder).

You appear to still have a package installed on volume1 because @appstore is 364 MiB.

I don't have an @ActiveInsight so I have no idea why your is 3.68 GiB.

Once you moved whatever packages are left in @appstore you should be okay to delete the ext4 storage pool 1 and create a btrfs storage pool 1.



[RalfPeter]

In @ActiveInsigt there is a sqlite database with all the activities on the NAS. I think it is not needed for a backup.


In @appstore there are older packages (that i had installed and deinstalled on my DS1513+ which i migrated by hdd to my DS1621+)

[
@appstore 364.19 MiB ]
├─ Java7                  │ ████████████████████████████████│  80%    294.91 MiB
│  ├─ j2sdk-image         │ ░███████████████████████████████│  99%    293.01 MiB
│  ├─ indexdb             │ ░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░│   0%      1.42 MiB
│  └─ ui                  │ ░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░│   0%    483.23 KiB
├─ JDownloader-test       │                           ██████│  18%     67.75 MiB
│  ├─ jd                  │                           ░░░░░█│  39%     26.46 MiB
│  ├─ libs                │                           ░░░░░░│  23%     16.10 MiB
│  ├─ Core.jar            │                           ░░░░░░│  10%      7.27 MiB
│  ├─ translations        │                           ░░░░░░│   8%      6.06 MiB
│  ├─ logs                │                           ░░░░░░│   7%      5.20 MiB
│  ├─ JDownloader.jar     │                           ░░░░░░│   4%      2.94 MiB
│  ├─ themes              │                           ░░░░░░│   2%      1.62 MiB
│  ├─ licenses            │                           ░░░░░░│   0%    524.23 KiB
│  ├─ update              │                           ░░░░░░│   0%    505.35 KiB
│  ├─ extensions          │                           ░░░░░░│   0%    445.87 KiB
│  ├─ tmp                 │                           ░░░░░░│   0%    400.79 KiB
│  ├─ tools               │                           ░░░░░░│   0%    176.05 KiB
│  ├─ license_german.txt  │                           ░░░░░░│   0%     38.70 KiB
│  ├─ license.txt         │                           ░░░░░░│   0%     31.28 KiB
│  ├─ cfg                 │                           ░░░░░░│   0%     28.56 KiB
│  ├─ java                │                           ░░░░░░│   0%      4.00 KiB
│  └─ build.json          │                           ░░░░░░│   0%         320 B
├─ WordPress              │                                 │   0%    925.27 KiB
│  ├─ indexdb             │                                 │  78%    730.34 KiB
│  ├─ ui                  │                                 │  17%    159.60 KiB
│  ├─ desktop             │                                 │   2%     21.36 KiB
│  └─ synology_added      │                                 │   1%      9.97 KiB
├─ adminer                │                                 │   0%    439.65 KiB
│  ├─ share               │                                 │  94%    413.53 KiB
│  └─ app                 │                                 │   5%     22.12 KiB
├─ Init_3rdparty          │                                 │   0%    137.62 KiB
│  ├─ app                 │                                 │  60%     82.94 KiB
│  ├─ php56               │                                 │  20%     28.58 KiB
│  └─ php70               │                                 │  16%     22.11 KiB
└─ cronjobeditor          │                                 │   0%     62.32 KiB
   ├─ images              │                                 │  31%     19.45 KiB
   ├─ editcron.php        │                                 │  23%     14.66 KiB
   ├─ newcron.php         │                                 │  12%      7.72 KiB
   ├─ cronjob.php         │                                 │   9%      5.62 KiB
   ├─ include             │                                 │   8%      5.49 KiB
   ├─ setcron.php         │                                 │   7%      4.81 KiB
   ├─ config              │                                 │   0%         397 B
   └─ application.cfg     │                                 │   0%         191 B



[DaveR]

It looks like you're ready to delete the ext4 storage pool and create your btrfs storage pool.
